TU(K) series
| Features | Line-up of choke coils with UU core for common mode noise, standard winding type for low frequencies and split winding type for high frequencies. |
|---|---|
| Rated current | 0.2A～4.2A |
| Inductance | 0.8mH～68mH |
| DC resistance | 0.11Ω～7.5Ω |
Product lineup
TU8 TYPE
| Features | Standard winding type for low-frequency noise rejection using small winding 2-slit construction and core μ7,000 material. |
|---|
TU8-S TYPE
| Features | Standard winding type for high-frequency noise rejection with compact winding 4-slit construction and core µ7,000 material. |
|---|
TUK9Y TYPE
| Features | Standard winding type for low-frequency noise rejection with small winding 2-slit construction and core µ7,000 material. Low profile type with the core placed horizontally. |
|---|
TUK9SY TYPE
| Features | Standard winding type for high-frequency noise rejection with compact winding 4-slit structure and core µ7,000 material. Low profile type with the core placed horizontally. |
|---|

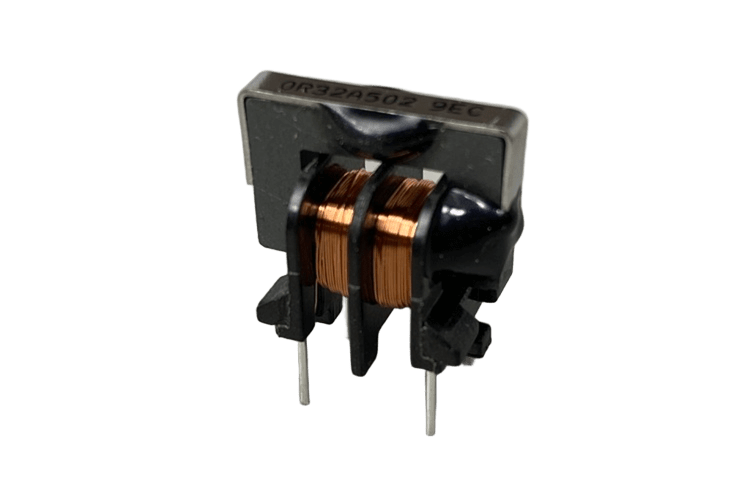

TUK9 TYPE
| Features | Standard winding type for low-frequency noise rejection using small winding 2-slit construction and core μ7,000 material. |
|---|
TUK10.5L TYPE
| Features | Standard winding type for low-frequency noise rejection with 2-slit winding structure and core µ7,000 material. |
|---|
TUK10.5SL TYPE
| Features | Standard winding type for high-frequency noise rejection with 4-slit winding structure and core µ7,000 material. |
|---|
TUK10.5SLA TYPE
| Features | Standard winding type for low-frequency noise rejection with 2-slit winding structure and core μ10,000 material. |
|---|
TUK10.5LH TYPE
| Features | A higher-frequency noise rejection type using core µ7,000 material with lower inter-wire capacitance through winding innovations. |
|---|
TUK7 TYPE
| Features | Standard winding type for low-frequency noise rejection with 2-slit winding structure and core µ7,000 material. |
|---|
